OTHER SUPERVISED MODELS

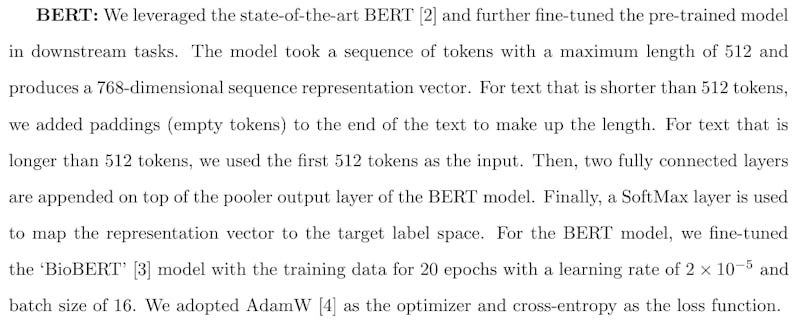

We performed a sentence-level classification using SVM and BERT. The entity-level annotation were converted to sentence-level.


SVM: Initially, we used two VSM methods namely term frequency-inverse document frequency (TF-IDF) and word2vec [1] to convert the clinical notes into vectors. However, the word2vecbased system performed better than the TF-IDF-based system and we reported the performance of word2vec-based system next. We used the same embeddings that we used to identify similar words. We used Eq 1 to convert the word vectors to a single vector. The embeddings settings are as follows: vector size: 300, minimum word count: 3, and window size: 10. We used the linear kernel in the SVM classifier.

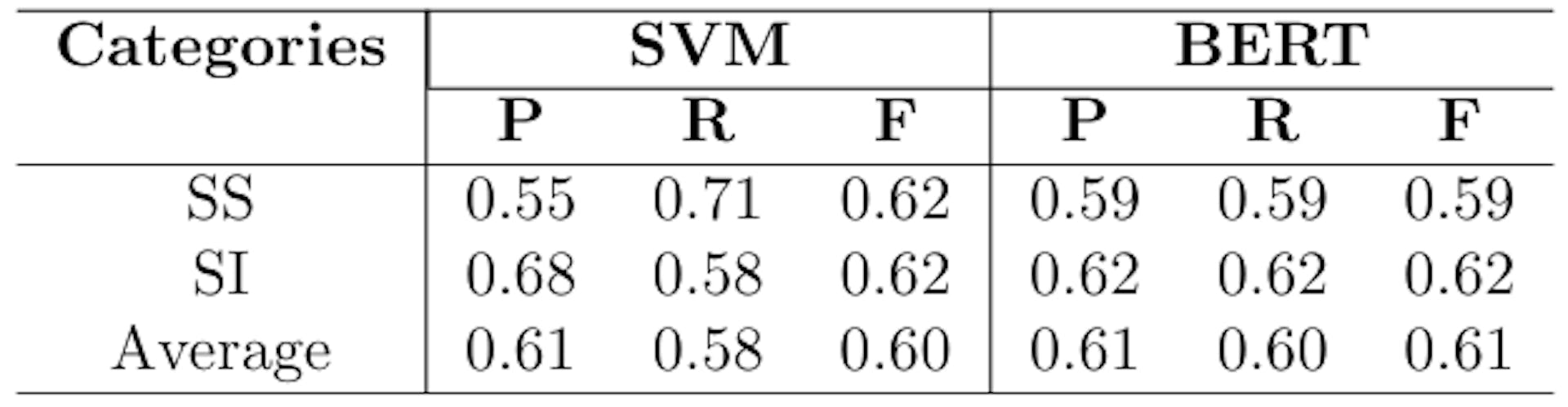

Table S6: Macro-averaged precision (P), recall (R) and F-scores (F) of SVM- and BERT-based NLP systems for coarse-categories on data from WCM only. Here, we split the data in 80:20 ratio for training and testing.

References

  1. Tomas Mikolov, Ilya Sutskever, Kai Chen, Greg S Corrado, and Jeff Dean. Distributed representations of words and phrases and their compositionality. Advances in neural information processing systems, 26, 2013.


  2. Jacob Devlin, Ming-Wei Chang, Kenton Lee, and Kristina Toutanova. Bert: Pre-training of deep bidirectional transformers for language understanding. arXiv preprint arXiv:1810.04805,


  3. Jinhyuk Lee, Wonjin Yoon, Sungdong Kim, Donghyeon Kim, Sunkyu Kim, Chan Ho So, and Jaewoo Kang. Biobert: a pre-trained biomedical language representation model for biomedical text mining. Bioinformatics, 36(4):1234–1240, 2020.


  4. Diederik P Kingma and Jimmy Ba. Adam: A method for stochastic optimization. arXiv preprint arXiv:1412.6980, 2014.

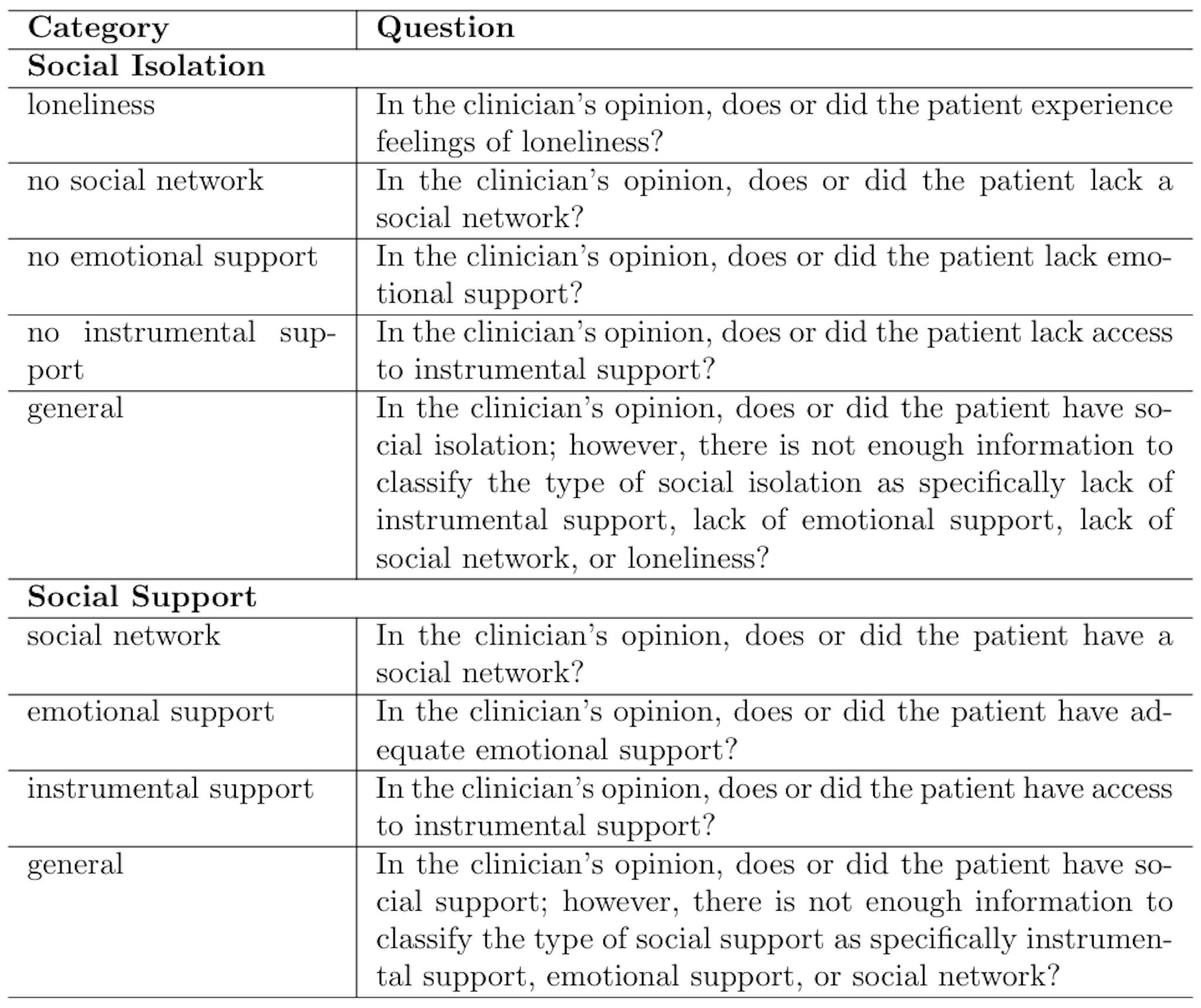

Table S7: Questions for fine-tuning LLM model for different categories.

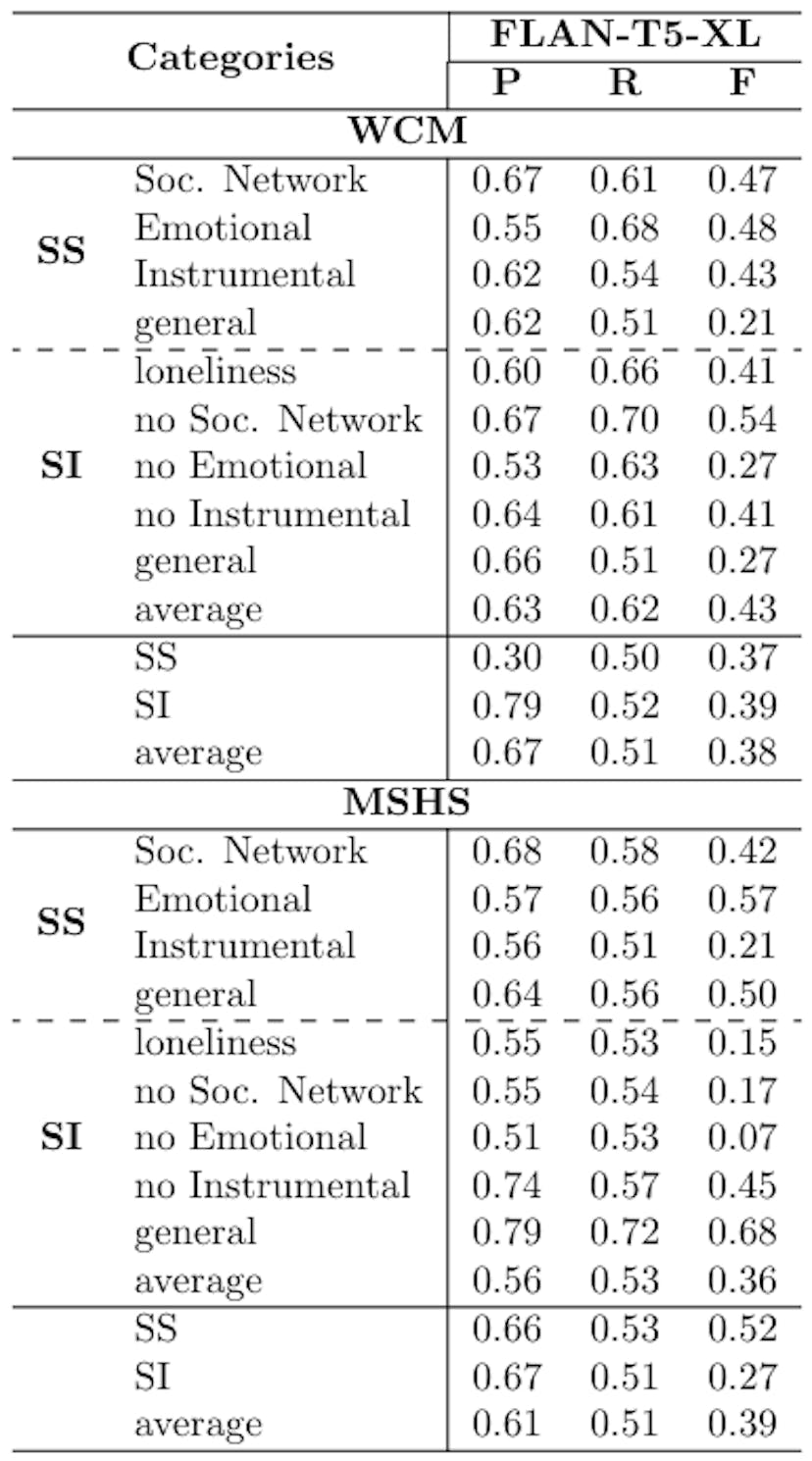

Table S8: Macro-averaged Precision (P), Recall (R), and F-scores (F) for fine and coarse-grained category classification using FLAN-T5-XL. Here, we used the instructions and did not fine-tuning the model using the examples.

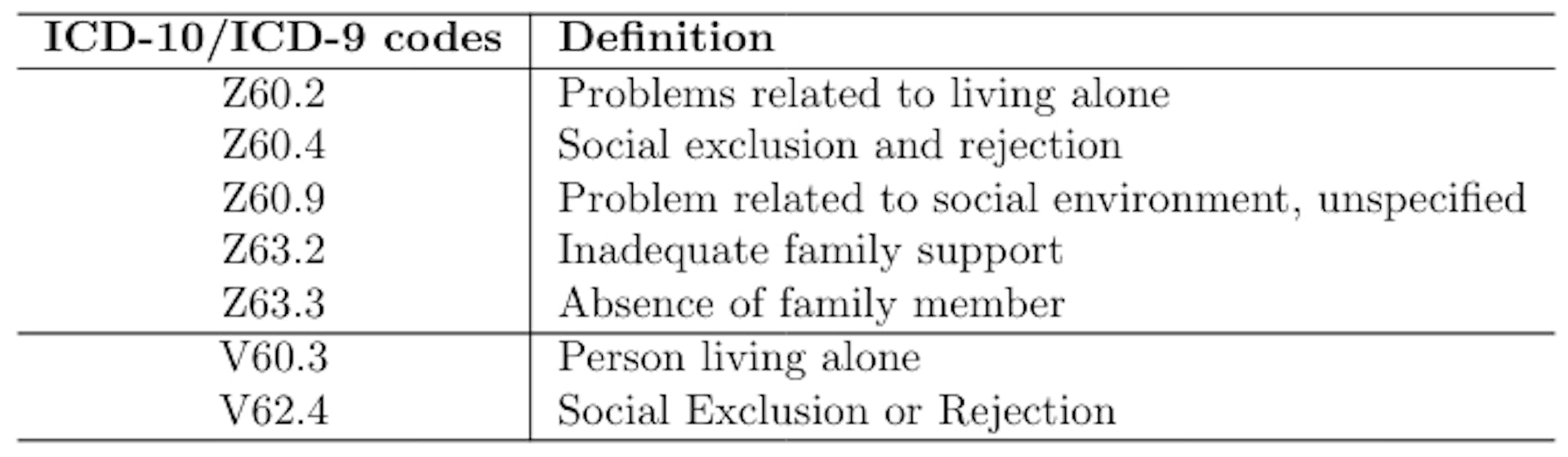

Table S9: Definition for each icd code

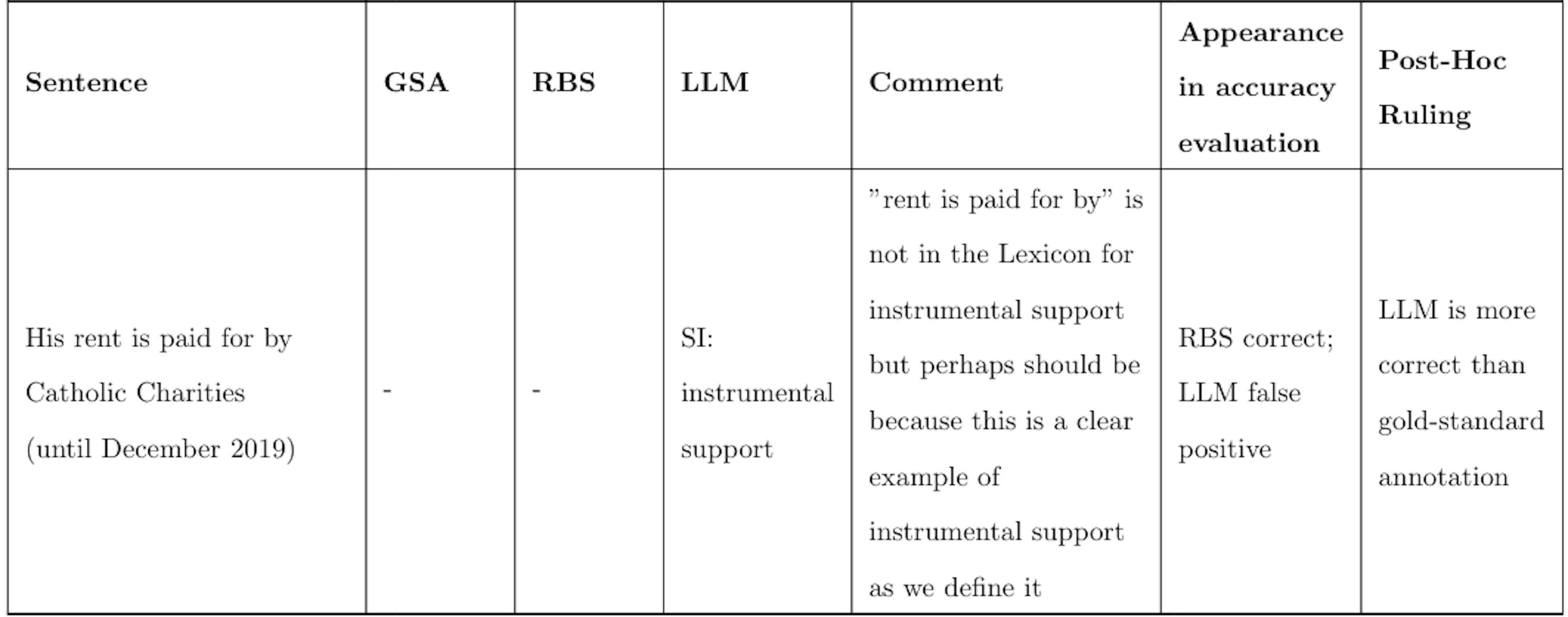

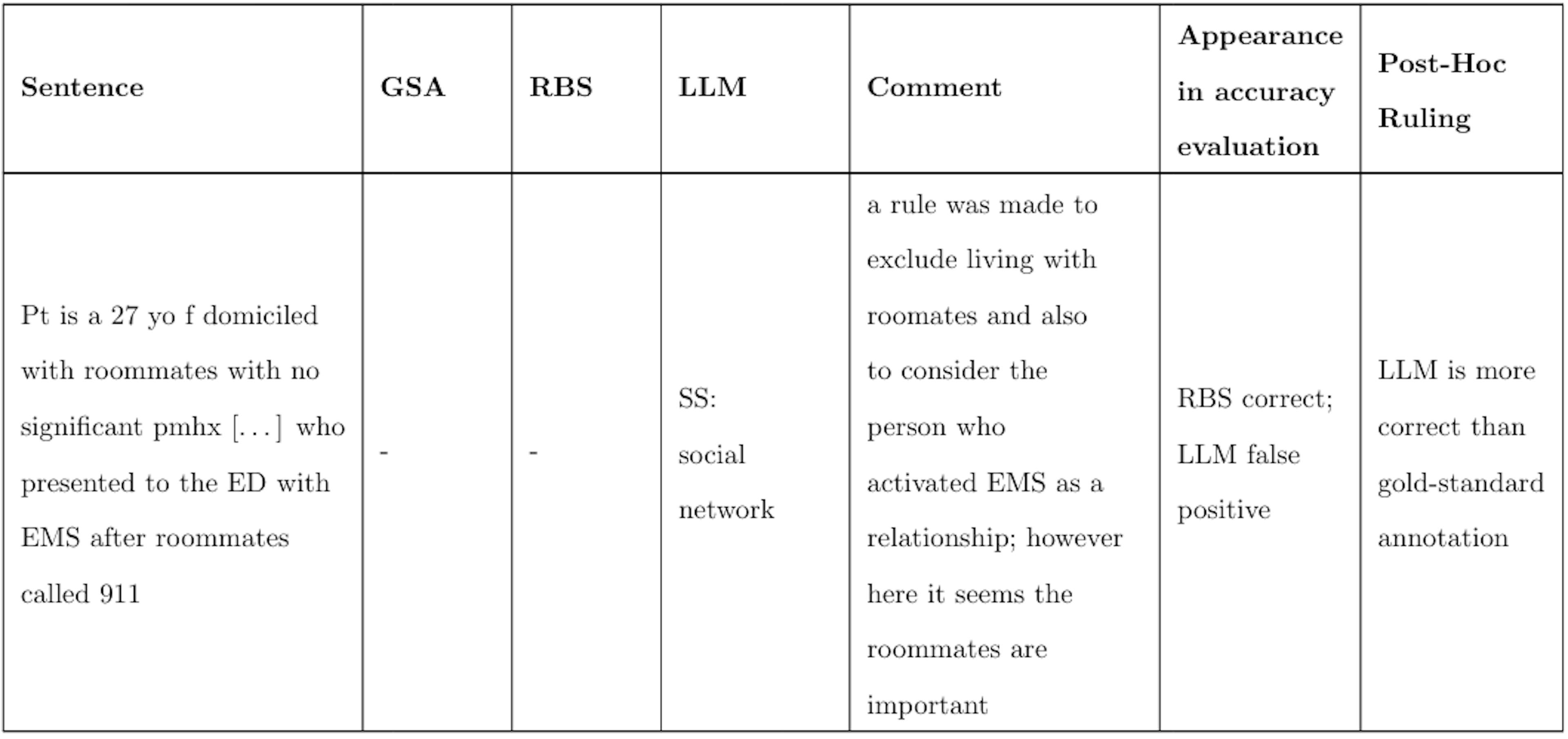

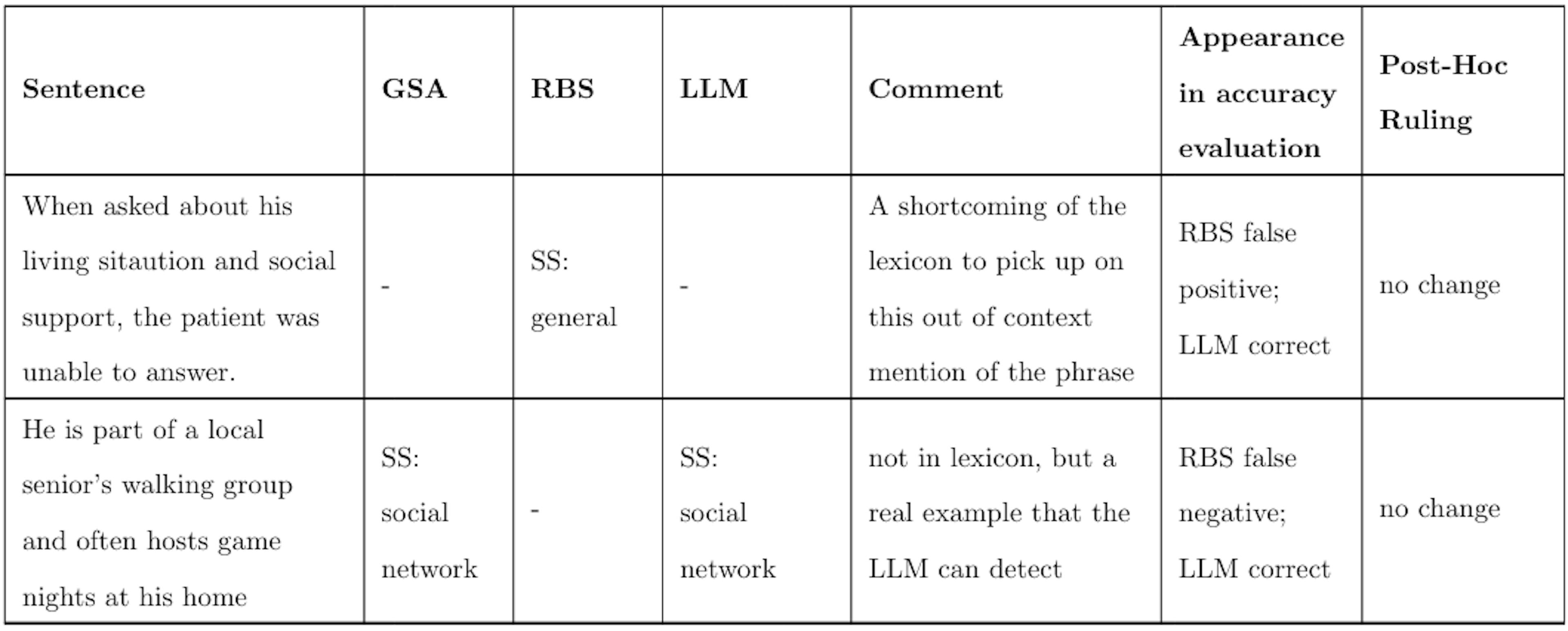

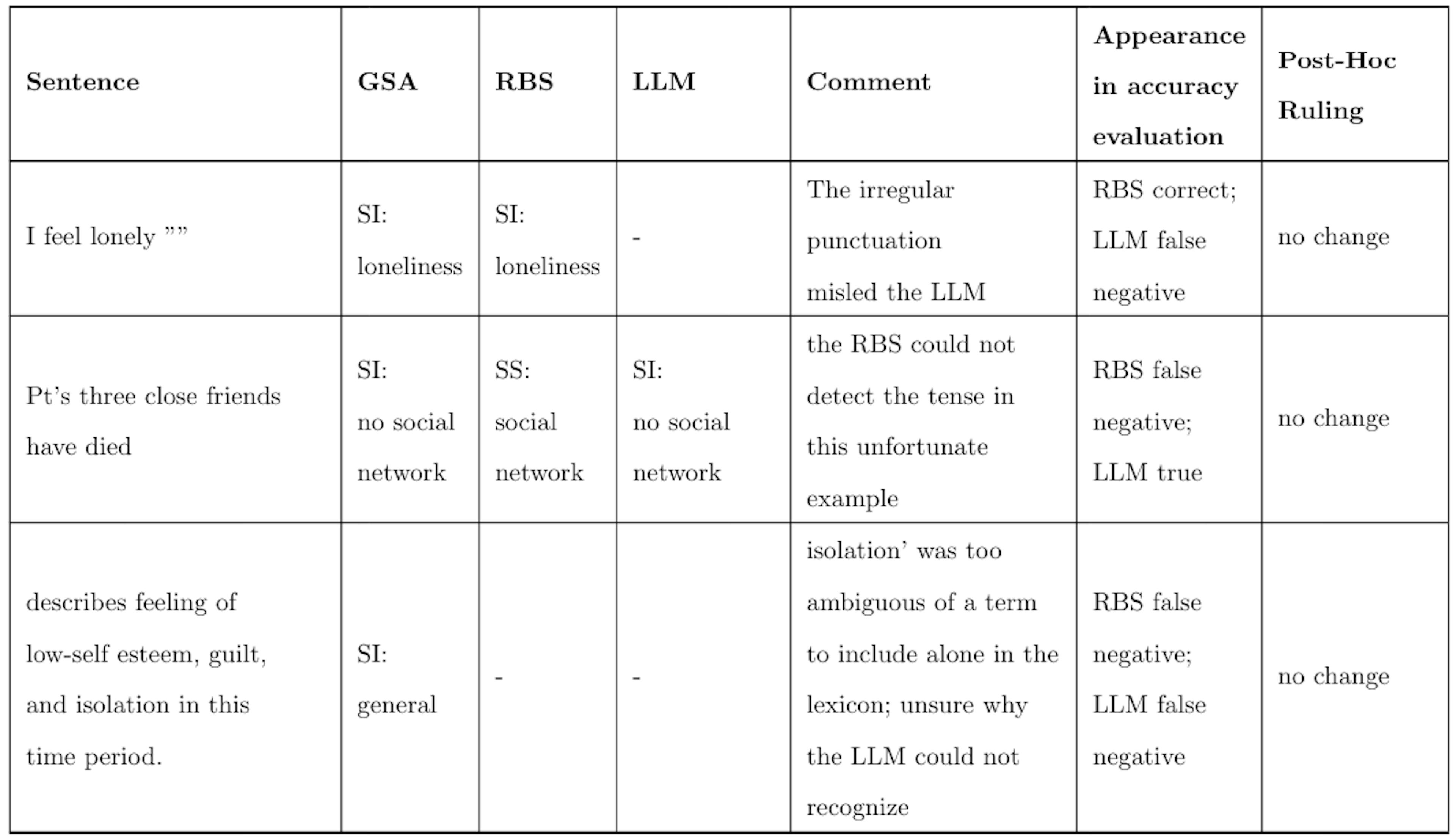

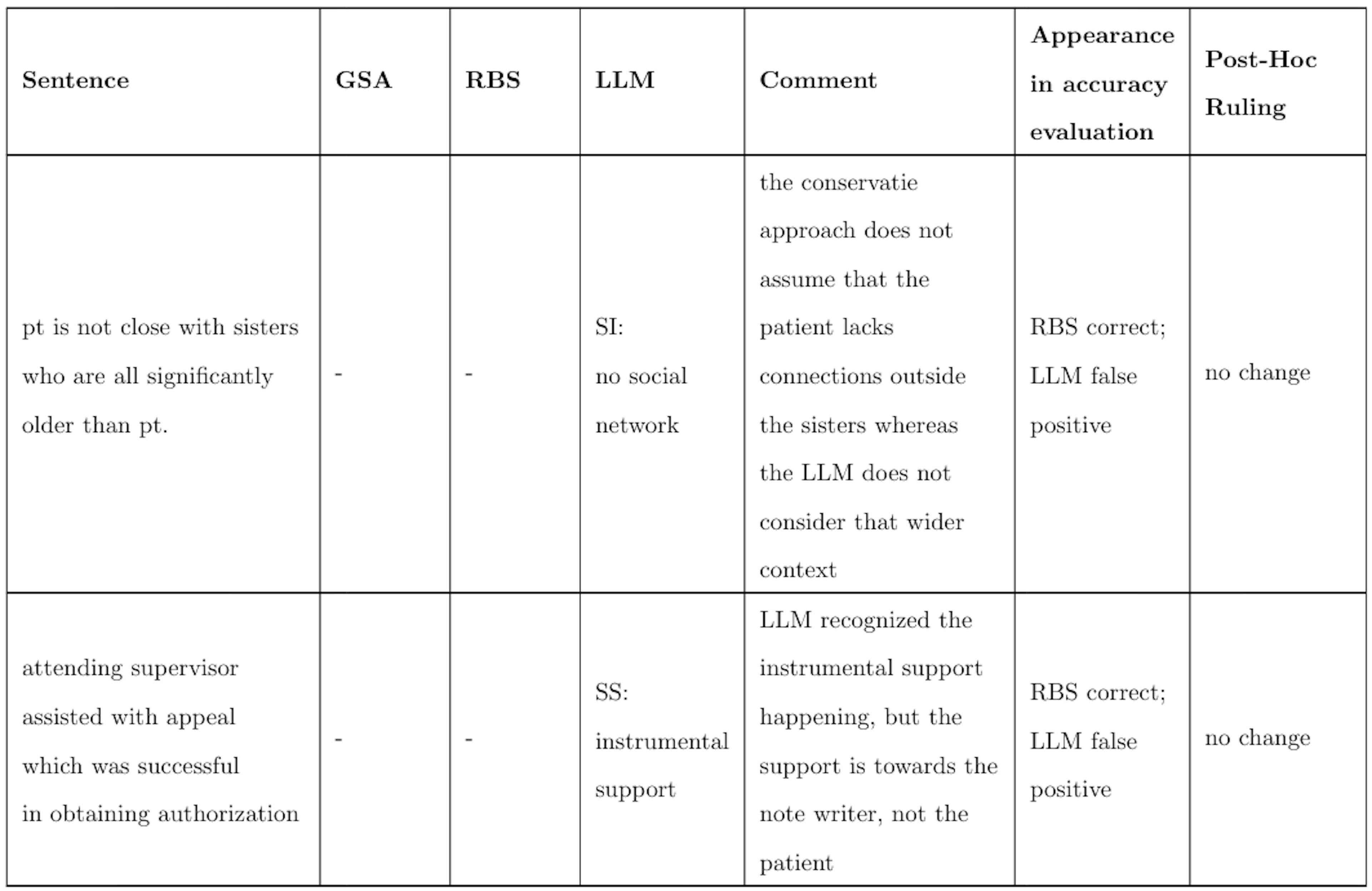

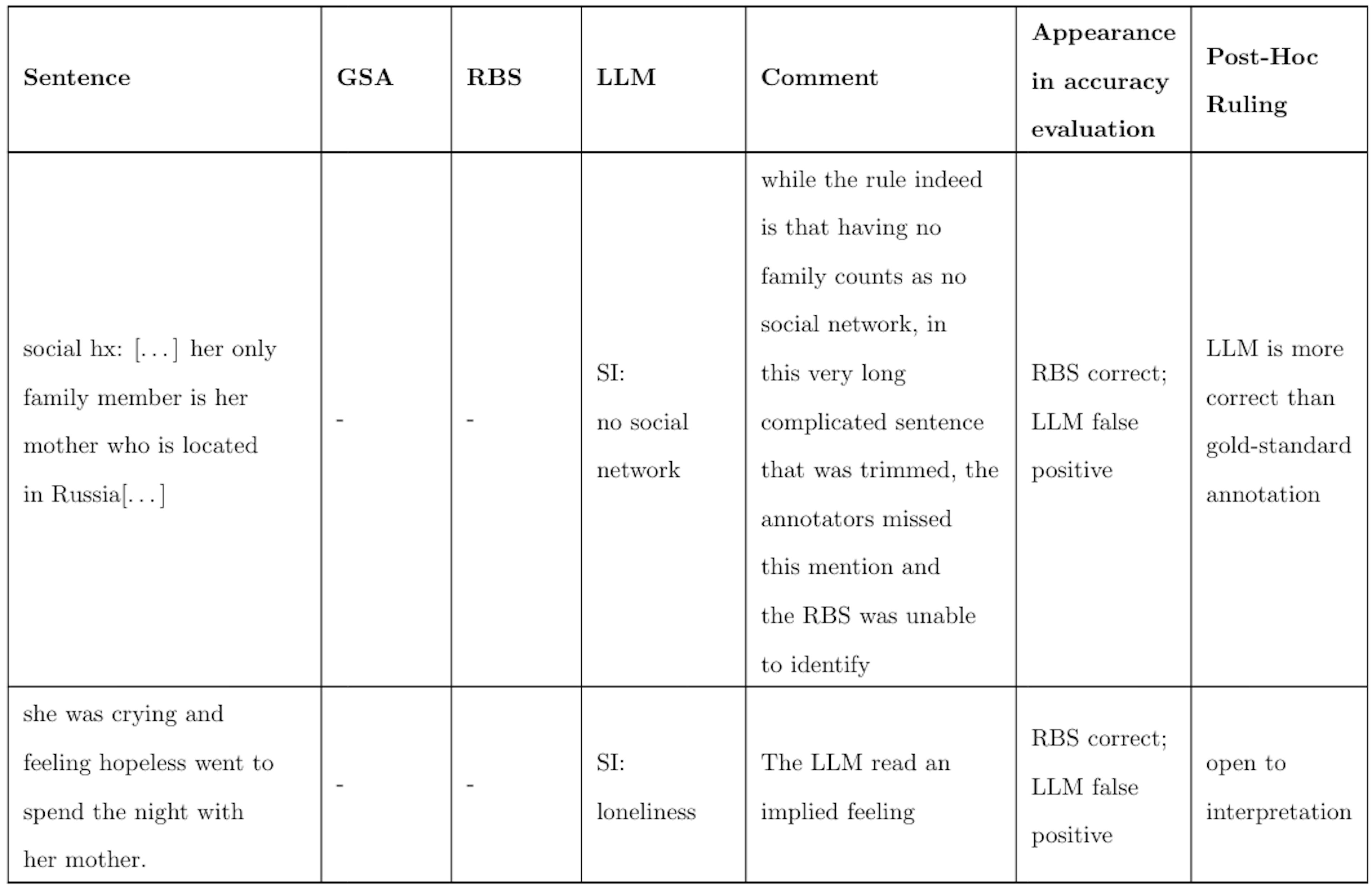

Table S10: Erroneous examples from Rule-based NLP systems (RBS) and LLM-based NLP systems.
